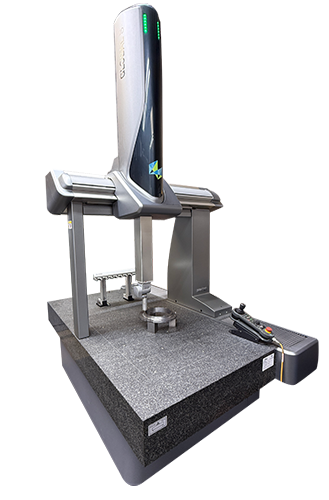

Global S Chrome 7.10.7 CMM

The Global S CMM is the next evolution of the versatile and scalable Global range from Hexagon Manufacturing Intelligence. It comes standard with a high performance analog scanning probe, advanced software with CAD and additional capabilities, training and warranty. The Global S model also includes the highest performance drives of all Global designs, bringing its top acceleration to 4.3 m/s2, for maximum measuring throughput. Gaining speed without compromise. The patent-pending Compass technology is the foundation of Global S's performance. Compass is an advanced and innovative system which uses physical hardware components and enhanced firmware algorithms to reduce and compensate for the CMM's intrinsic vibrations and any impact on results. Elastic joints between the drive system and the frame prevent the transmission of the machine's vibrations, while advanced firmware algorithms mitigate any residual effects from the machine motion. Users can therefore achieve optimum throughput during scanning measurements, without compromising on accuracy. Although Compass technology was designed to ensure that Global S maintains optimum accuracy at the highest scanning speeds, its integration also results in improved performance for all kinds of inspection including point-to-point touch trigger measurements. Guiding the CMM through the unknown. Scanning of unknown paths can often be challenging and time-consuming. The advanced firmware algorithms of Scan Pilot offer greater motion control capabilities that ensure robust scanning performance however complex the geometry or abrupt the surface changes. - Measuring Range 700mm (27.56'') x 1000mm (39.37'') x 660mm (25.98'')

System • Global S Chrome 7.10.7 CMM • Controller, DC800 US • Extended Temperature Range (16-26 degree) • Passive dampers • Messaging Lights kit • Multi-CMM Dryer / Filter (110V) • Next Jog Box

Probe Heads and Sensors • Motorized Head, HH-AS8-T2.5 • HP-S-X1H Scanning Probe • Styli Clamping, HP-S-X1C/HP-S-X1H • Standard Styli Kit, HP-S-X1H • Automatic Styli Changer, HR-X-400, X1, X3 • HR-X1-P-SF Stylus Changer Port, Shop Floor • Probe Qualification Sphere, Ceramic (M8)

Computer & Software • PC-DMIS CAD++ • PC-DMIS Tip Changer • PC-DMIS Autopath Module • PC-DMIS Blade • Computer, Dell T5810XL ,16GB, WIN10-IOT-LTSB • Operator Workstation (110v) • Monitor, Dell 24" Flat Panel LCD Monitor or current model • Monitor Stand, Single
